V. Protective Articles
1. Exposure suit
Static-proof work clothes

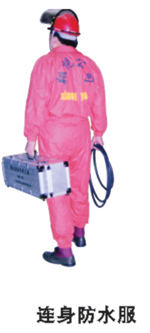

2 Overall water-proof garment

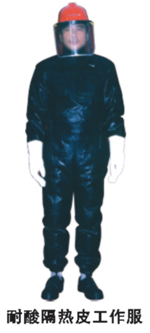

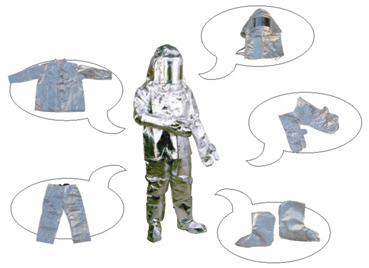

3. Temperature-resistant and heat-insulation gantlet Acid-proof heat-insulation leather work clothes Refractory aluminum foil exposure suit Outside view of aluminum foil exposure suit
Reflectivity of radiation: Reflecting above 90% radiation heat
Enduring radiation for one hour at 300 and enduring radiation heat for thirty minutes at 500 , able to engage in emergency work at places with 10W/CM2(900-1000 ) heat flux 5m to the heat resource.
Acid-proof and alkali-prevention work clothes
Hard Hat with Veil (V Headgear)
The V structure of the cap could strengthen the shock resistance and anti-penetrating capacity of the hard hat.
The liner of the hard hat is made of excellent top quality polyurethane materials, and hence has outstanding air permeability and sweat suction. It is comfortable to wear, suitable to match the exposure suit for the face and ears.
3. Shock-resistance Glasses
Excellent transparency and able to endure the shock by a steel ball with the 6mm dimension at a speed of 45m/s. Band Cup Glasses
Materials of glasses are excellent plastic and equipped with complete polycarbonate lens
It could effectively avoid the damage to eyes caused by shock and prevent fog and chemical mediums from stimulating eyes and the condensation of vapor from influencing the line of sight.
HB25 ear muff (Shengdi Company), Performance: Reducing 25-decibel noises
Earplug

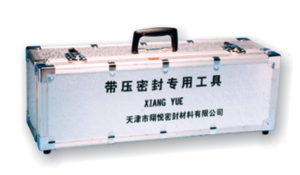

Toolbox
Special Equipment for Pressure Sealing Construction
Name
|
Specification
|
Unit
|
Amount
|
TXY-II Filling Tool
|
|
Set
|
1 |
Self-reset Filling Gun
|
II Type
|
Piece
|
|
Manual High Pressure Pump
|
0 — 60Mpa |
Set
|
Manometer
|
0 — 60Mpa |
Piece
|
Gauge Stand Joint
|
Three-pass
|
Piece
|
Package Joint
|
Closed
|
Set
|
High-pressure Hose
|
5M |
Piece
|
Introduction Valve
|
M12 |
Piece
|
10 |
Commutating Joint
|
90 ° |
Piece
|
2 |
Commutating Joint
|
120 ° |
Piece
|
2 |
Screw Filling Joint
|
M12-M36 |
Set
|
1 |
Belt Tightener
|
Manual
|
Piece
|
1 |
Steel Band Card
|
|
Piece
|
10 |
Steel Band
|
1.25*30mm |
Meter
|
20 |
Multi-purpose Callan
|
Big, Medium, Small
|
Set
|
1 |
Chargeable Electric Drill
|
10mm |
Piece
|
1 |
Long Drill
|
4*200mm |
Piece
|
5 |
Acid-proof Thermal-insulation Gantlet
|
|
Pair
|
2 |
Hard Hat with Veil (Headgear)
|
|
Piece
|
2 |
Multi-purpose Toolbox
|
|
Piece
|
1 |
Note: The table is for general allocation project, and each using unit could make adjustments subject to its own working conditions. |
