Paste, Repair and Supplementary Articles

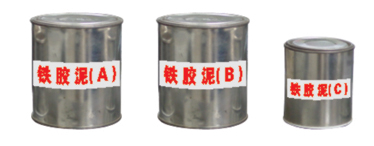

i. Heat-proof Quick Steel Paste
It consists of the following three types, and the main glue A is off-white paste, firming agent B is black paste, and accelerant C is white powder
Usage and Features
1 Proportioning glue, A:B:C=6:2:1 (weight ration), able to make adjustments for proportioning subject to the requirement
2. Method of blending glue, mainly used in manual kneading (wearing plastic gloves), the blended glue materials are black paste, which could be used in any direction, free from running and shrinkage, and as hard as stone after being solidified.
3. It could be solidified within 0.5-4 hours under normal temperature or within a few minutes under high temperature.
4. It could be used for a lone time under –40-+200 , and at the place without oxygen, the temperature could reach as high as 350 .
5. Shearing strength>12Mpa and compression strength>30Mpa.
6. The three groups could be stored as long as two years under a normal temperature with the stable performance.
7. It could resist water, oil, steam, weak acid, weak alkali and other organic solvents.
8. The glue prepared under normal temperature and low temperature could be coated on the spot, used on the high temperature and stream spots. The prepared glue should be placed in the open air for half an hour, and only after the glue is not sticky, could it be used.
9. The A group becomes hard due to the low temperatures and should be used after being softened through drying.
10. As for the cold place, if the glue is heated with steam, airbrush, hair drier, hot-water bag, or high-temperature bulb, the solidification could be much better.
Application Scope and Examples
1. It could paste metal, ceram, glass, cement, bakelite, hard plastic, etc.
2. Equipment holes could be mended with manual glue, convenient for operation.
3. Piping break could be mended with glass fabric dipped cloth, which could seal and solidify the piping.
4. The cable joint could be kneaded and closed from any direction.
5. The groove of the wedged lathe guide rail could be used for nicking. (The grinding wheel is used to make the V trough in the groove, then small close holes are drilled, and finally it is cleaned for wedging)
6. As for the crack caused by spray leakage holes, the machine should be shut off temporarily to discharge pressure, paste should be made as soon as possible, and the machine could be restarted after being solidified, which means special tools could be spared.
7. Tip pasting flange gasket for sealing the broken water (oil).
8. Holes caused by corrosion of oil tank or natural gas tank could be repaired with pressure.
9. Glue in stead of welding is used to repair the broken pump.
10. Concreting and repairing the sliding and worn of screw and nut.
11. Filling hydraulic glue-filling gun to seal leakage of flange, pipe and screw joint caused by high or low temperature.
12. Wedging holes and leakage in chinaware, cylinder, metal pail and wooden basin.
The glue consists of two types, namely large package 2.25kg.set, and small package 1kg/set.

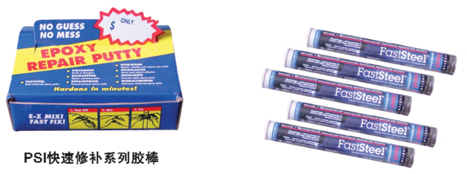

ii. PSI Quick Repair Paste steels
Polymeric Systems Inc. patent product cost, and daub sticks with the same core, in lien with performance of the pasted objects, in allusion to paste steels with similar gravity, density and expansion coefficient, to guarantee the quality of viscidity.
Varity and applicable parts
( FASTSTEEL )
Paste Steel
Used for repairing steel products, such as repairing crack in engine cylinder body, filling foundry sand hole, sealing leakage piping, restoring defect parts and making samples.
( REPAIRITQUIK )
Repair It Quick
Multi-purpose, quick solidifying, initially solidifying duration of 3~5 minutes, able to paste metal, wood, glass, ceram and other materials, and capable of sealing the electric insulation.
( AQUAREPAIR )
Aqua Repair
Excellent in comprehensive performance, able to repair and fix under water; in particular, applicable in sealing of leakage in glass steel hull, bathtub and PVC pipe, outstanding in aging-resistant performance
( QUICKCOPPER )
Quick Copper
Able to repair leakage problems in pipes, valve, spout, tap and radiator even under the condition of humid surfaces.
( QUIKALUMINUM )
Quick Aluminum
Able to repair and repair aluminum and aluminum alloy, vessel, casting and doors and windows.
Usage
Eliminating dirt, oil soil and other deposit builders on the parts to be pasted, taking paste steel from the plastic pipe, cutting the needed amount, mixing the different colors inside and outside the pipe, pasting on and then taking it away from the surface of the parts to be pasted so as to improve the adherence, and dipping some water with fingers to nap it in order to achieve a smoother surface. The mixed paste could react in a short time and becomes warmer in 3-5 minutes and solidified in 5-25 minutes for the intensity and rigidity of the polishing and processing. In winter, in cold areas, when it is used, it should be heated to or above the room temperature and then used for repairing surfaces.
Technical Coefficient of Quick Repairs
Materials
Parameter
|
Paste steel
|
Repair it quick |
Aqua repair |
Quick copper
|
Quick aluminum
|
High- temperature healant |
Name |
Unit |
Test Standard |
|
|
|
|
|
|
Operation agglutinate duration |
Minute |
|
3 - 5 |
3 - 5 |
20 - 30 |
3 - 5 |
6 - 8 |
1 - 2 |
2 24-hr solidifying rigidity |
Shaw |
ASTM
D2240 |
75-85 |
70-80 |
65-75 |
75-85 |
60-70 |
75-80 |
Adhesive stretch intensity |
Mpa |
ASTM
D1002 |
5.5-6.9 |
5.5-6.9 |
5.5-6.9 |
4.1-5.5 |
3.5-5.6 |
51 |
Compression strength |
Mpa |
ASTM D695 |
69-97 |
69-97 |
69-97 |
69-97 |
69-97 |
84 |
Temperature-proof limitation |
|
|
121 (continuous) 149 (interim) |
-10-260 |
Chemical resistant performance |
|
U1698 |
Anti-grease, alcohol, ketone, hydrocarbon, salting liquid, acid and alkali |
Rate of shrinkage |
|
|
1% |
Surface resistance |
M |
ASTM D257 |
30 , 000 |
Insulation intensity |
KV/mm |
ASTMD149 |
11.8 |
Non-volatile matter |
|
|
100% |
Shelf life |
Normal temperature |
|
The best shelf life is 12 months and it could be used within 3-5 years. |
2-3 2-3 years |
UK SOTEC Repair Products
( 1 )
(1) Product Introduction
Name |
Usage |
matching ratio (volume) Mix: Firming agent |
Operation and filling solidification time |
Highest use temperature |
Applicable medium |
Metal RG
emergency healant ( high polymer and alloyed steel phosphide) |
Sticking defects in walls of equipment and surface of machinery and cracks of between metals |
|
|
|
Carbonic acid, alkali, ammonia hydroxide, 6% sodium hypochlorite, oil, water, toluene and dimethylbenzene |
| Metal EG high-performance molecular alloy compound materials (macromolecule phosphate alloyed steel) |
Used to repair the abrasion and crack of machinery, axis, bearing bush, machine tool, guide rail, and valve body |
|
|
|
10% acetic acid and carbonic acid, 10% phosphoric acid, 10-20% muriatic acid, 10% nitric acid, 10% vitriol, alkali, sodium hypochlorite, ketone, oil, water, toluene and dimethylbenzene |
| Metal SG emergency repair paste steel |
Defects in emergency repair pot, piping, valve and other metal surfaces (water acceptable) |
Cutting some paste steel and making it into one color with hands |
5-15min |
200 |
Applicable in many chemical mediums |
| Antisepsis EG (high polymer ceram) macromolecule polymer, alloyed steel, and wear ceram powder as bases (anti-ablation antisepsis repair materials) |
Excellent anti-ablation and antisepsis performance, able to repair defects caused by equipment abrasion and corrosion |
|
|
|
20% vitriol, and others as that of EG |
| Antisepsis (high polymer ceram) coating of anti-abrasion and antisepsis surfaces |
Providing anti-abrasion and antisepsis protective coating for equipment and prolongs their service life |
|
|
|
Carbonic acid, 10% phosphoric acid, 10% vitriol (exclusive acetone, formaldehyde and aldehyde), and others as that of EG |
| Antisepsis UG macromolecule polymer matching firming agent, high-performance antisepsis coating compound materials |
Resisting corrosion of strong acid and alkali, and prevention of corrosion of metal surface with metal and hard nonferrous, consisting of pasty type and coating type |
|
|
|
Acetic acid, carbonic acid, muriatic acid, phosphoric acid, vitriol, 10% formate, alkali, 6% sodium hypochlorite, oil, water, alcohol, ketone, chloroform and aldehyde |
| Antisepsis CP/PW, coating of antisepsis surface |
Suitable for stock tank, piping, channel, water tank, valve, structure steel, metal or concrete pool, ground, wall antisepsis coating |
|
|
|
10% acetic acid, carbonic acid, 20% muriatic acid, 10% nitric acid, 20% vitriol and others as that of UC |
| (compound adhesive tape for piping sealing) fabric belt dipped polyurethane compound materials |
Normal-temperature winding repair piping leakage |
Dipping in water and pressing for twice or three times, (five seconds) swift winding |
|
|
Applicable in many chemical mediums |
Construction Method
Eliminating the oil soil on the parts to be repaired, loosening deposit builders and the corrosion layer, polishing the metal body, and forming certain roughness;
Cleaning the surface of parts to be repaired with acetone or alcohol;
Getting the compound materials according to the proportion and dosage of the healant and then mixing and stirring them completely;
Repair operation, and controlling the mixing, repair and coating of the mixtures in line with the speed of solidification of products.
4. High-intensity magnet used for binding
(1) Specification of high-intensity magnet: 70 × 60 × 30
(2) Suction of the magnet: 3kg/cm 2
(3) Usage: Used for solidifying the magnetic force and coating wall of binding gas holder, of stock tank and of other large carbon steel equipments
(4) Use and operation method
Preparing stainless steel or copper plate or plastic plate or other plates made of non-magnetic materials in accordance with size of the leakage parts;
Daubing agglomerant on the sheet, and coating agglomerant on the edges of the leakage parts;
Clinging the sheet with coated agglomerant to the leakage parts, and quickly pressing the magnet;
4Taking the magnet away after the adhesive is solidified, brushing some epikote, and reinforcing it with the glass cloth dipped with epikote after the brushed epikote is solidified. |
|
