Accessory Tools for Construction

i. Drilling Tools

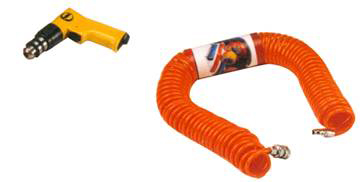

. Pneumatic drill
It is used in the spot operation subject to the requirement for explosion protection, with such features as secure and convenient operation and high efficiency. The air supply is 0.5 ~ 0.7Mpa. In line with particular conditions, polyamide compressed air vessel with proper length and corresponding quick joint could be selected for matching.
Pneumatic drill

2. Chargeable electric drill
With charger and chargeable battery, it could drill holes, screw down (bolt), thread and clean sealant. The diameter of the largest drilled hole is 10mm.
(1) Model and specification
Model: 601DW model Specification and technical data

(2) Figure of chargeable electric drill

10mm (3/8 ? ) 601DW-type with charger
(3) Long drill ? 4 × 150mm and ? 4 × 200mm super-long drill could be used to seal leaked drill holes and glue holes with valve packing box.
ii. Caulking Tools
It is the minisize air pick that drives the chisel to reciprocate with high frequency, used for wedging or caulking.
1. Complement assembly: Minisize air pick, chisel (punch), air duct and quick joint.
(1) Flat chisel, used for connecting to the gap mosaic brass wires with the besieging and intercepting brass wires; round chisel, used for caulking eliminating or decreasing the gap.
(2) Air duct: 7.62m and 15.24m polyamide pipes (including joints)
2. Figure
AT-2030/R 250mm Minisize air pick

iii. Metal Strip Packing Tools
1 Belt tightener, used for straining the metal strip and straining and cutting the off function. There are two kinds of belt tighteners, say mechanical and hydraulic belt tighteners.
2. Metal strip, with the materials of 1C ? 18N i 9T I stainless steel, with a length of 1.25mm and 1.5mm, with a width of 30mm, and the length subject to the requirement.
3. Metal strip clip, after the metal strip is strained, the wrench with six inner corners is used to strain the metal strip clip for tightening the screw.
4. Figure
Mechanical tightener, hydraulic belt tightener, metal strip, and metal strip clip

iv. G Callan
1. Purpose: Used to strengthen the clip and to inject the sealant. With flange leakage, the sealant is injected through the screw. Before the nut is disassembled, the G Callan is used to reinforce the flange for connecting the intensity so as to prevent the nut from becoming flexible and the leakage from increasing. The valve packing box or the screw thread joint leakage is sealed, the G Callan is used to inject the sealant.
2. Specification: Large, medium and small according to the size of the bayonet
? Large bayonet, 115mm
? Medium bayonet, 85mm
? Small bayonet, 65mm

3. Figure
